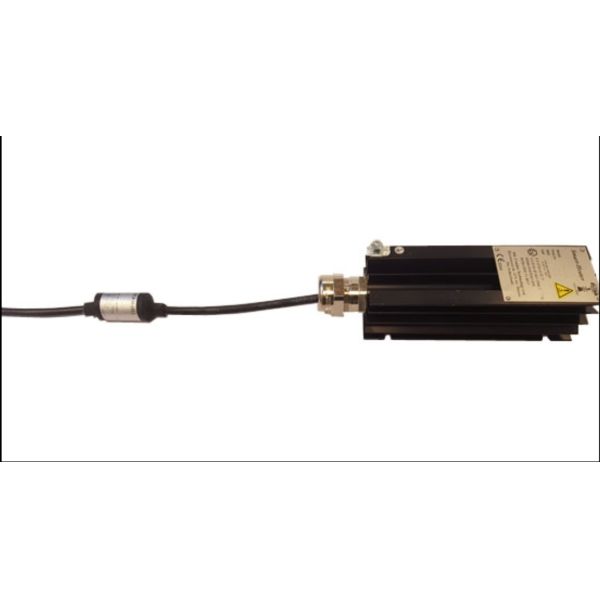

Explosion Proof Thermostats FIX THERM Inline

Brand Name : condor

Model Number : FIXTHERM INLINE Ex THERMOSTAT IL-*/*

Certification : DEKRA 13ATEX0176 and IECEx DEK 13.0062

Place of Origin : Mauritius/Netherlands

MOQ : 1pcs

Price : EURO/USD/HKD

Payment Terms : T/T

Delivery Time : 2-4 weeks

Packaging Details : carton

Housing Material : Aluminium covered with heat-shrink tube

Voltage : 6A / 240 VAC

cable : 3x 1 sqmm

Material cable : silicone cable, outer diam. ca. 7.4 mm

Standard length : ca. 1 mtr

Other lengths : on request

Overall dimensions : o.d. ca. 25 mm x 44 mm length

weight : ca. 30 g.

Switch : SPST

Set-point tolerance : +/- 3°C

Hysteresis : ca. 2°C

Ambient Temperature Range : -55 °C … + 65 °C

EX protection class : ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db; IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db

Certifications : DEKRA 13ATEX0176 and IECEx DEK 13.0062

Features : Setpoints up to 60°C

Power Source : Electric

color : black

Contact Now

Explosion Proof Thermostats FIX THERM Inline Thermostat ELECTRICAL FIXTHERM INLINE Ex THERMOSTAT IL-*/*

Description

1 Application

The FixTherm Inline Thermostats are often used as maximum thermostat in instrumentation cabinets with space-heating, to protect the equipment from overheating.

  • Prevention of overheating
  • Temperature protection

2 Features and Advantages

  • Setpoints up to 60°C
  • Accurate set-point (± 3°C)
  • Small hysteresis
  • Suitable for T6 classification
  • Can be used for 6A / 240 VAC/DC

3 Remarks

  • The housing is made from covered aluminium.
  • When required in applications it is normal practice to use our Space-heaters and Direct-heaters in combination with this
  • FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

  • IL-10/5 – going up with 5°C setpoints e.g. 10/5 – 15/10 – 20/15 etc. up to 60°C maximum.

5 Technical data

Housing Aluminium covered with heat-shrink tube
Current / voltage 6A / 240 VAC
Cable 3x 1 sqmm
Material cable silicone cable, outer diam. ca. 7.4 mm
Standard length ca. 1 mtr
Other lengths on request
Overall dimensions o.d. ca. 25 mm x 44 mm length
Weight ca. 30 g.
Switch SPST
Set-point tolerance +/- 3°C
Hysteresis ca. 2°C
Ambient temp. range -55 °C … + 65 °C
EX protection class ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db;
IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
Certification DEKRA 13ATEX0176 and IECEx DEK 13.0062
